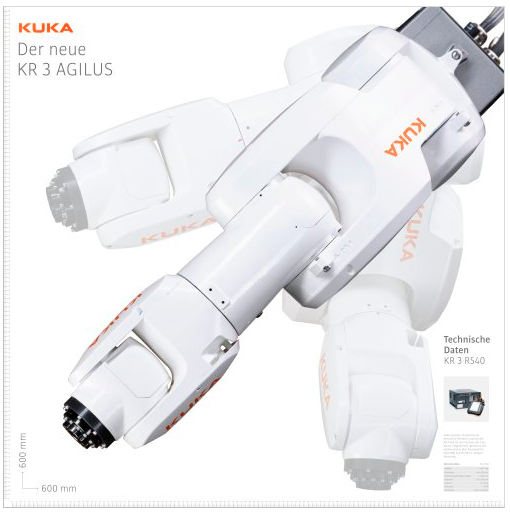

KUKA KR 3 AGILUS

影片

資訊

The KR 3 AGILUS is particularly suitable when small components and products have to be manufactured in a minimum of space. Assembling small components, handling, screw fastening, adhesive bonding, packaging and inspecting: it can be used wherever short production cycles are required with the highest level of output. Thanks to its compact size, the KR 3 AGILUS offers maximum productivity per square meter. This combination makes the robot especially appealing to the electronics industry. Suitable for these applications:

  • Application of adhesives and sealants
  • Packaging and order picking
  • Handling for other machines
  • Plastics processing machines
  • Palletizing
  • Soldering
  • Fastening
  • Trainning
  • KUKA: Stop taking order after 2021.03.31 for KR3 R540


    來信詢價   訂購後一個月出貨

    規格

    • Payload of Robot: 3 Kg
    • Maximum Reach: 541 mm
    • Repeatability: ± 0.02mm
    • Protection rating: IP40
    • Weight: approx. 26 kg
    • Controller: KRC4 compact
    • Robot Motion Range
      • Axis 1: ±170º
      • Axis 2: +50º/-170º
      • Axis 3: +155º/-110º
      • Axis 4: ±175º
      • Axis 5: ±120º
      • Axis 6: ±350º
    • Robot Motion Speed
      • Axis 1: 530º/s
      • Axis 2: 529º/s
      • Axis 3: 538º/s
      • Axis 4: 600º/s
      • Axis 5: 600º/s
      • Axis 6: 800º/s
