規格

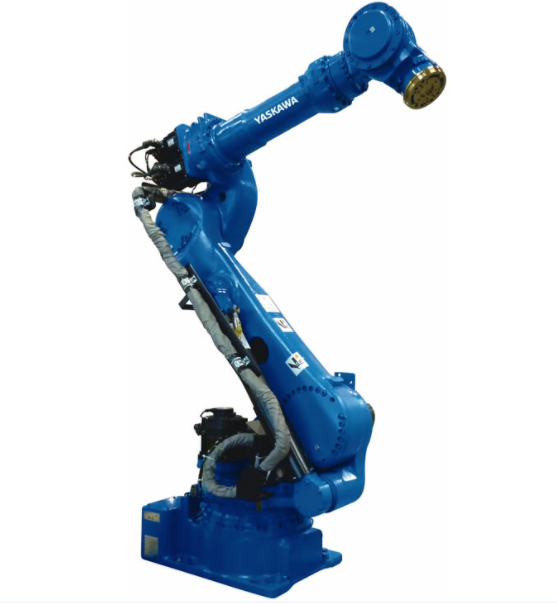

• Payload of Robot: 180 Kg
• Maximum Reach: 3393 mm(Vert.) 2702 mm(Horz.)
• Repeatability: ± 0.20 mm

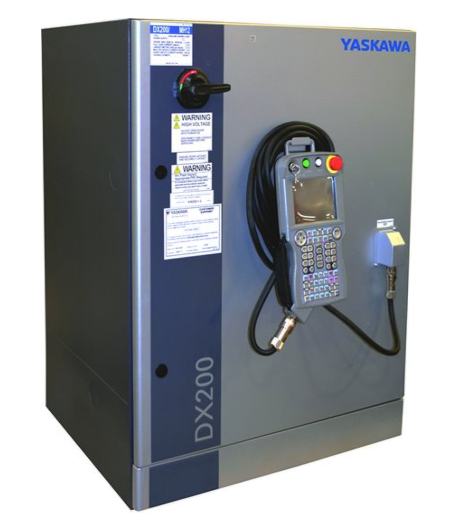

• Controller: DX200
• Weight: 970Kg
• Robot Motion Range
  • Axis S: ±180º
  • Axis L: -60º/+76º
  • Axis U: -147º/+90º
  • Axis R: ±360º
  • Axis B: ±130º
  • Axis T: ±360º
• Robot Motion Speed
  • Axis S: 125º/s
  • Axis L: 115º/s
  • Axis U: 125º/s
  • Axis R: 182º/s
  • Axis B: 175º/s
  • Axis T: 265º/s

MH180 Data Sheet
