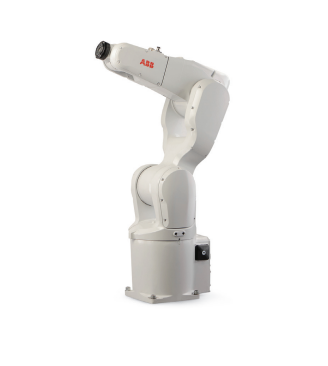

ABB IRB1200

影片

資訊

Suitable for this applications

  • Handling for other machines
  • Plastics processing machines
  • Measuring, testing and inspection
  • Palletizing
  • Other handling operations
  • Packaging and order picking
  • Application of adhesives and sealants
  • Fastening
  • Inserting, mounting
  • Other assembly/disassembly operations
  • Other machining operations
  • Metal die-casting machines, foundry works
  • Forging plants
  • Cutting machine tools
  • Food & Beverage Industry application
  • Other coating operations

  • 來信詢價   訂購後兩個月出貨

    規格

    • Payload of Robot: 5/7 Kg
    • Maximum Reach: 900/700 mm
    • Repeatability: ± 0.02mm

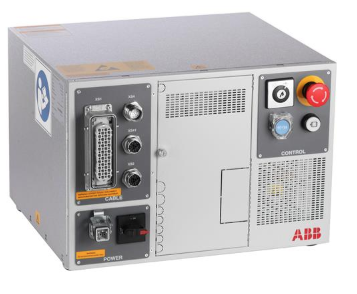

    • Controller: IRC5
    • Robot Motion Range
      • Axis 1: ±170º
      • Axis 2: +135º/-100º
      • Axis 3: + 70º/-200º
      • Axis 4: +270º/-270º
      • Axis 5: +130º/-130º
      • Axis 6: +400º/-400º
    • Robot Motion Speed
      • Axis 1: 288º/s
      • Axis 2: 240º/s
      • Axis 3: 300º/s
      • Axis 4: 400º/s
      • Axis 5: 405º/s
      • Axis 6: 600º/s
    • Standar:IP40/ Option:ISO3/ Option: Food Grade Lubrication
