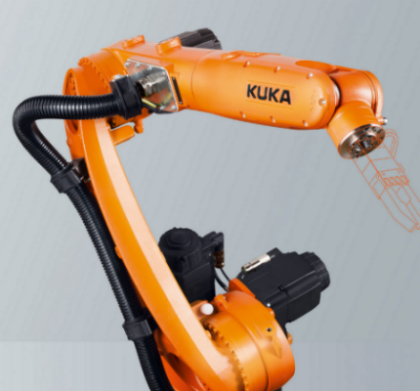

KUKA KR 8 CYBERTECH nano R1620

影片

資訊

Suitable for this applications

  • Handling for other machines
  • Plastics processing machines
  • Measuring, testing and inspection
  • Palletizing
  • Other handling operations
  • Packaging and order picking
  • Application of adhesives and sealants
  • Fastening
  • Inserting, mounting
  • Other assembly/disassembly operations
  • Other machining operations
  • Metal die-casting machines, foundry works
  • Forging plants
  • Cutting machine tools
  • Other coating operations

  • 來信詢價   訂購後三個月出貨

    規格

    • Payload of Robot: 8 Kg
    • Maximum Reach: 1620 mm
    • Repeatability: ± 0.04mm
    • Protection rating: IP54
    • Weight: approx. 165 kg
    • Controller: KRC4 compact
    • Robot Motion Range
      • Axis 1: ±170º
      • Axis 2: -185º/65º
      • Axis 3: -137º/163º
      • Axis 4: ±185º
      • Axis 5: ±120º
      • Axis 6: ±350º
    • Robot Motion Speed
      • Axis 1: 220º/s
      • Axis 2: 210º/s
      • Axis 3: 270º/s
      • Axis 4: 381º/s
      • Axis 5: 311º/s
      • Axis 6: 492º/s
